Solidify modifier problem

I always having an artefacts - appearing extra volumes of material, while trying to apply Solidify modifier on my models.

I only need thikness inside the model, not outside. What am I doing wrong? Chaniging order between other modifiers doesn't help much. Could anyone help me?

  • of Nodes & Noodles(gcs_dev) replied

    It looks like you could have duplicate vertices exactly on top of eachother. Try Merging them; Select all vertices, press Alt+M, click on By Distance.

  • spikeyxxx replied

    Also check your Normals (after merging possible double vertices like ggcs_dev said):

    Everything should be blue.

  • happybirthday replied

    Removing doubles helped much, thank you, but not fixed everything. Some material still appears from outside, especially in the narrow places.

    Please check the result with and without solidify:

    as for Normals, seems they are OK:

  • of Nodes & Noodles(gcs_dev) replied

    Hmm. I'm seeing some pretty funky topology; lots of N-gons and "extra" vertices. Could you post a screener with the Boolean modifiers deactivated, please?

  • spikeyxxx replied

    HI happybirthday, maybe the thickness of your Solidify Modifier is greater than the thickness of those problem areas?

  • happybirthday replied

    Probably it is! How to avoid bulging the material out of the model outside the external borders in that case?

  • spikeyxxx replied

    Make it smaller, or assign a Vertex Group to the problem areas (or everything but those areas) so you can exclude them from the Solidify Modifier.

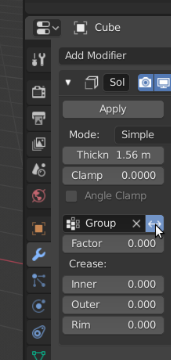

    You can invert the Vertex Group if you want here:

  • Palo Piktor(thepainter) replied

    Hmm, i dont see any reason why you need to have solidify inside part of you mesh. You should separate such parts like windows, they are not one piece with the chassis in real life either. Also try RIM ONLY when solidifying.
