    Bevel not working

    Aisling Egan(Aishe)
    posted to: Creating the Cartridge Slot

    It works in most places even though I had to do work around multiple vertices (particularily around the bite marks). There was a lot of jarring angles with clamp overlap turned off so I had to do a lot of merging and repositioning of vertices. The bevel is not working around the cartridge slot and one of the bite mark edges and I'm not sure why.  I'll try upload some images. Any ideas?

    Reply
    • A
      Aisling Egan(Aishe) replied

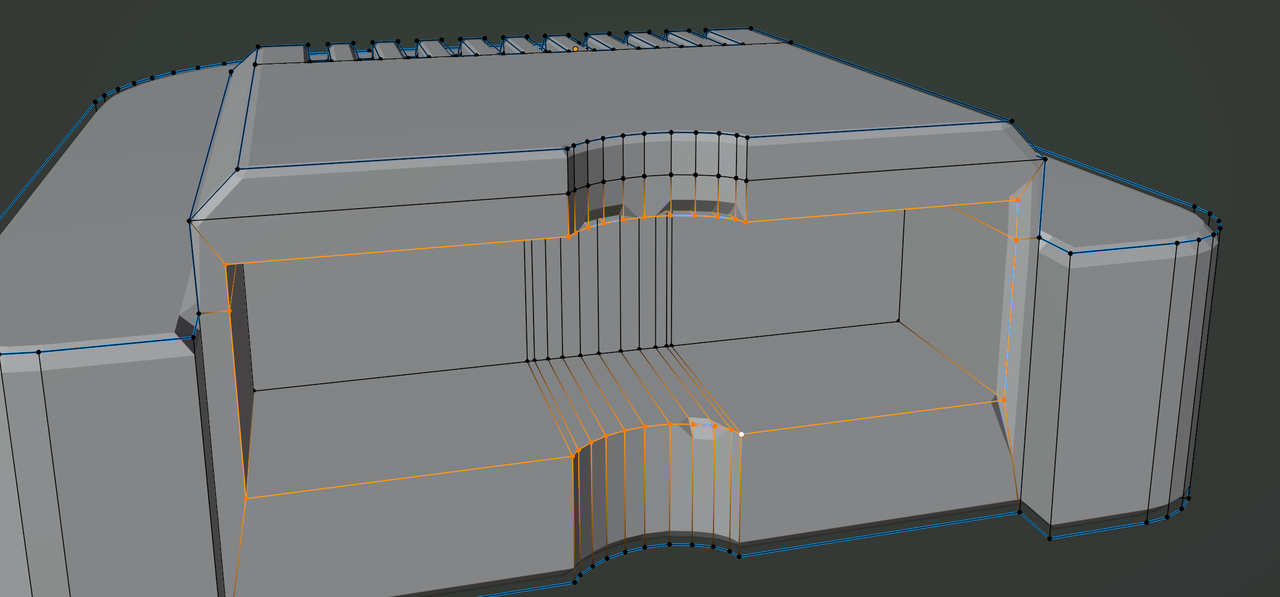

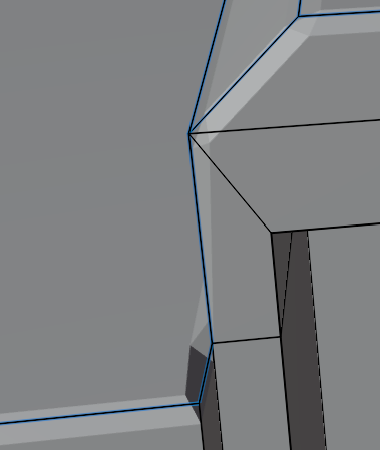

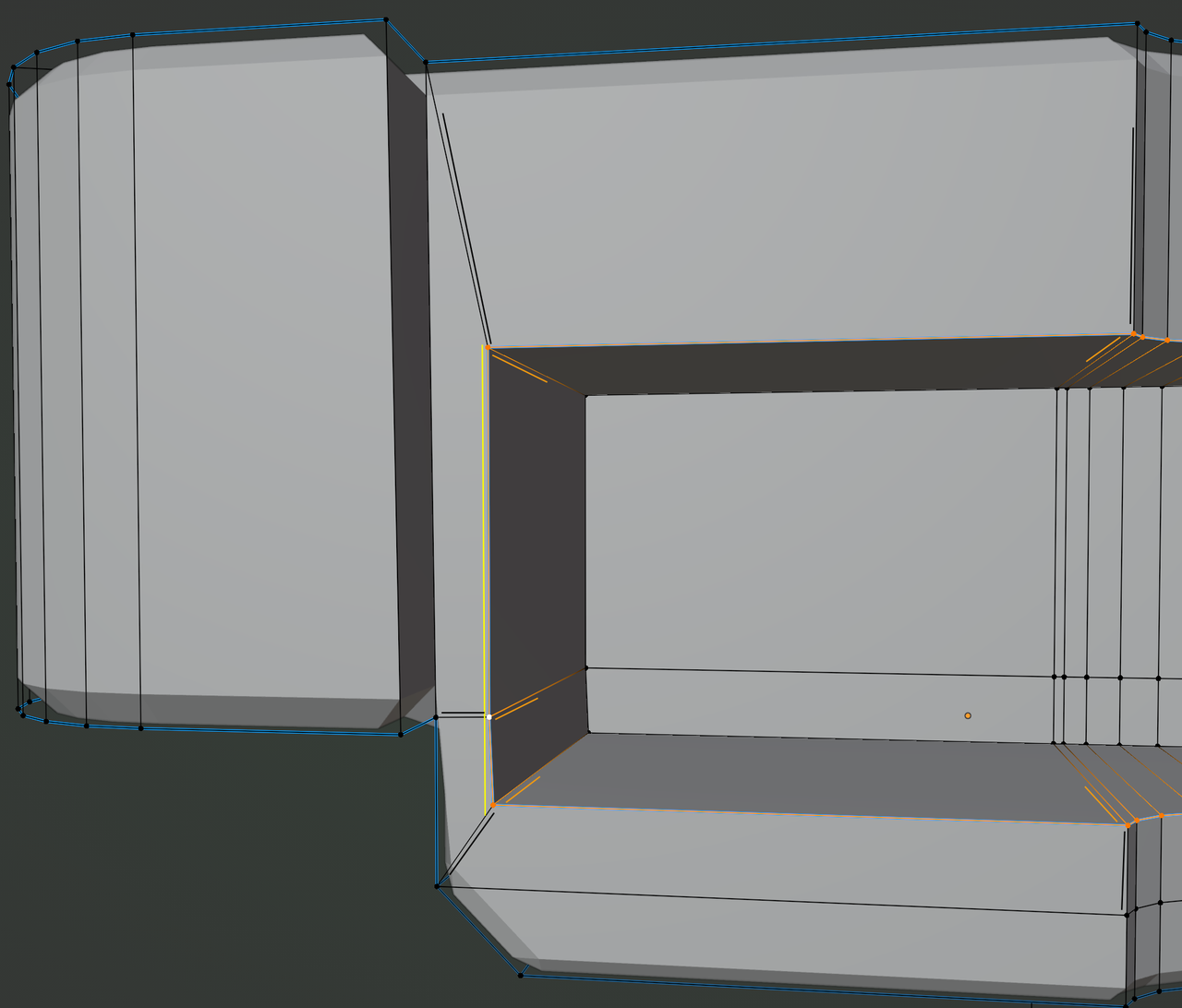

      Close_Up_2_Right.pngClose_up_1_Left.pngridge slot bevel.png

    • Martin Bergwerf replied

      HI AAishe ,

      Sorry, but I can't tell from the screenshots alone.

      If you can upload your .blend file and post a link here, we can investigate.

    • A
      Aisling Egan(Aishe) replied

      This is going to sound stupid but how do I upload my .blend file?


    • Martin Bergwerf replied

      Upload it to Googledrive, Dropbox, or so and post a 'share' link here.


    • A
      Aisling Egan(Aishe) replied


      https://mega.nz/file/vxwA3JqI#gmju5VEQxiKxaoxTTyJOuTr98NhuvlQO-garL35J5OU

    • Martin Bergwerf replied

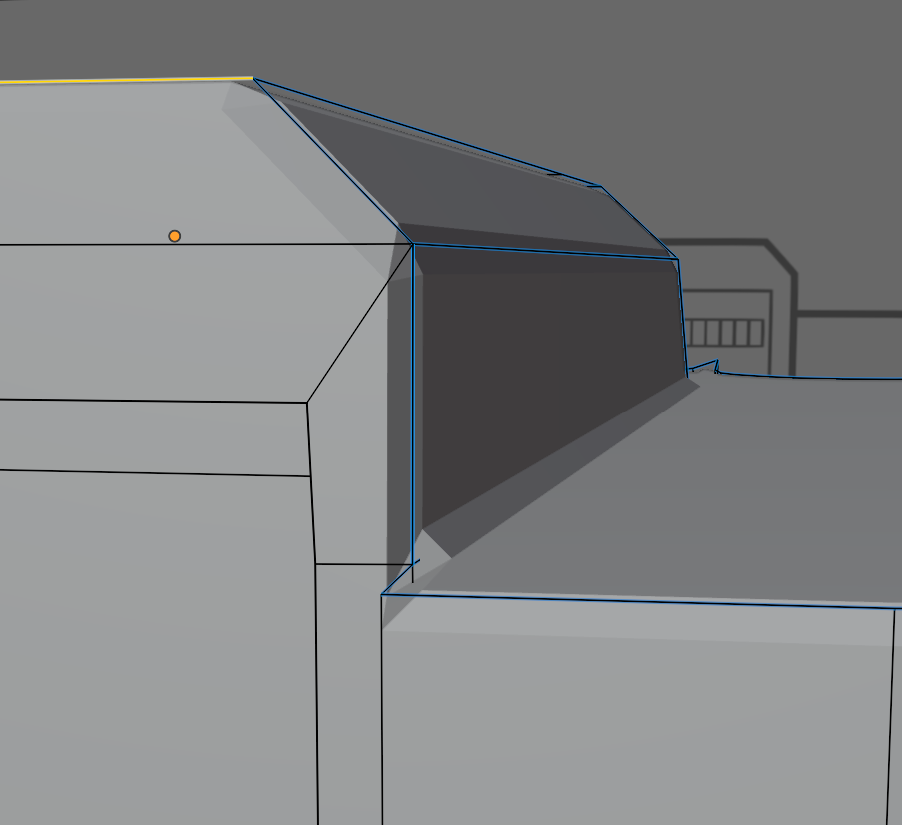

      Hi Aisling, you have so-called double Vertices (see how these don't connect outwards):


      A, M > Merge > By Distance.

      Also, as you can see the 3 Vertices along the sides are not in a straight line.

      S, X, 0 to line them up.

      I hope this is clear enough.

    • A
      Aisling Egan(Aishe) replied

      Thanks. I have no idea how that happened. Initially those actions didn't work but it works now. Any ideas of how to get rid of or fix the remaining jarring angles?

      https://mega.nz/file/jlB00YRI#gmju5VEQxiKxaoxTTyJOuTr98NhuvlQO-garL35J5OU

    • Martin Bergwerf replied

      Hi Aisling,

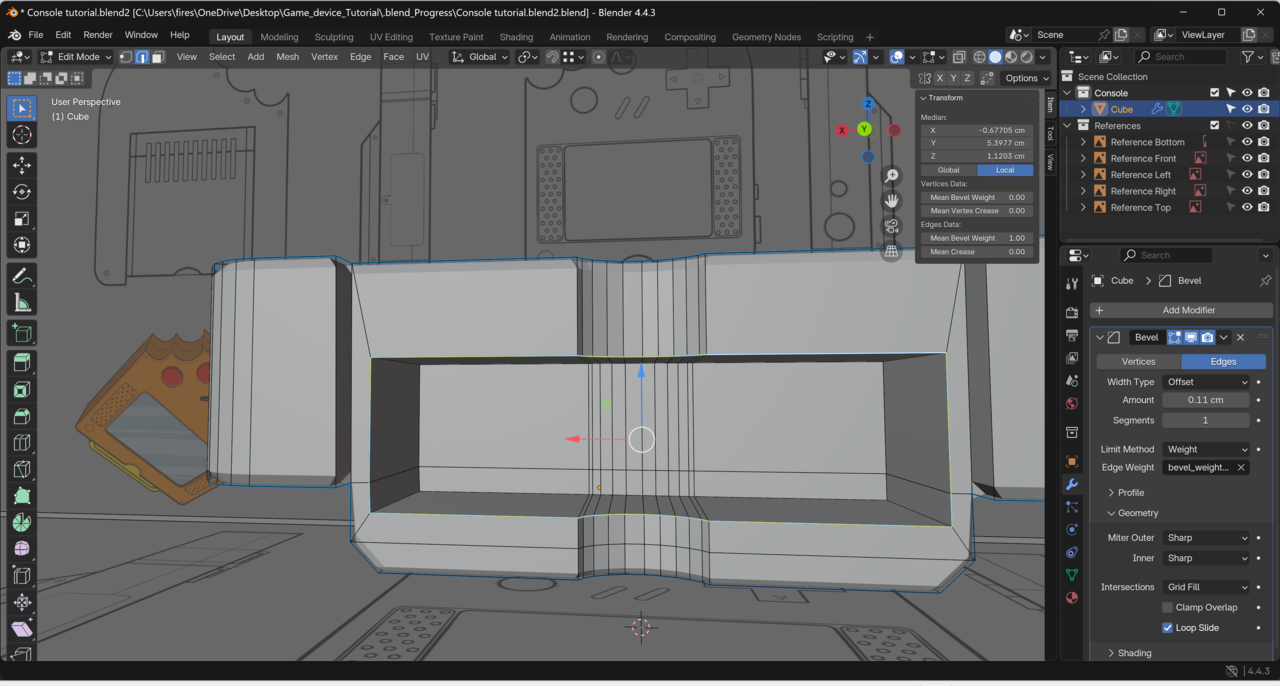

      I am not sure what parts you mean exactly, but After Merging, you might need to re-set the Bevel Weight on some of those Edges:

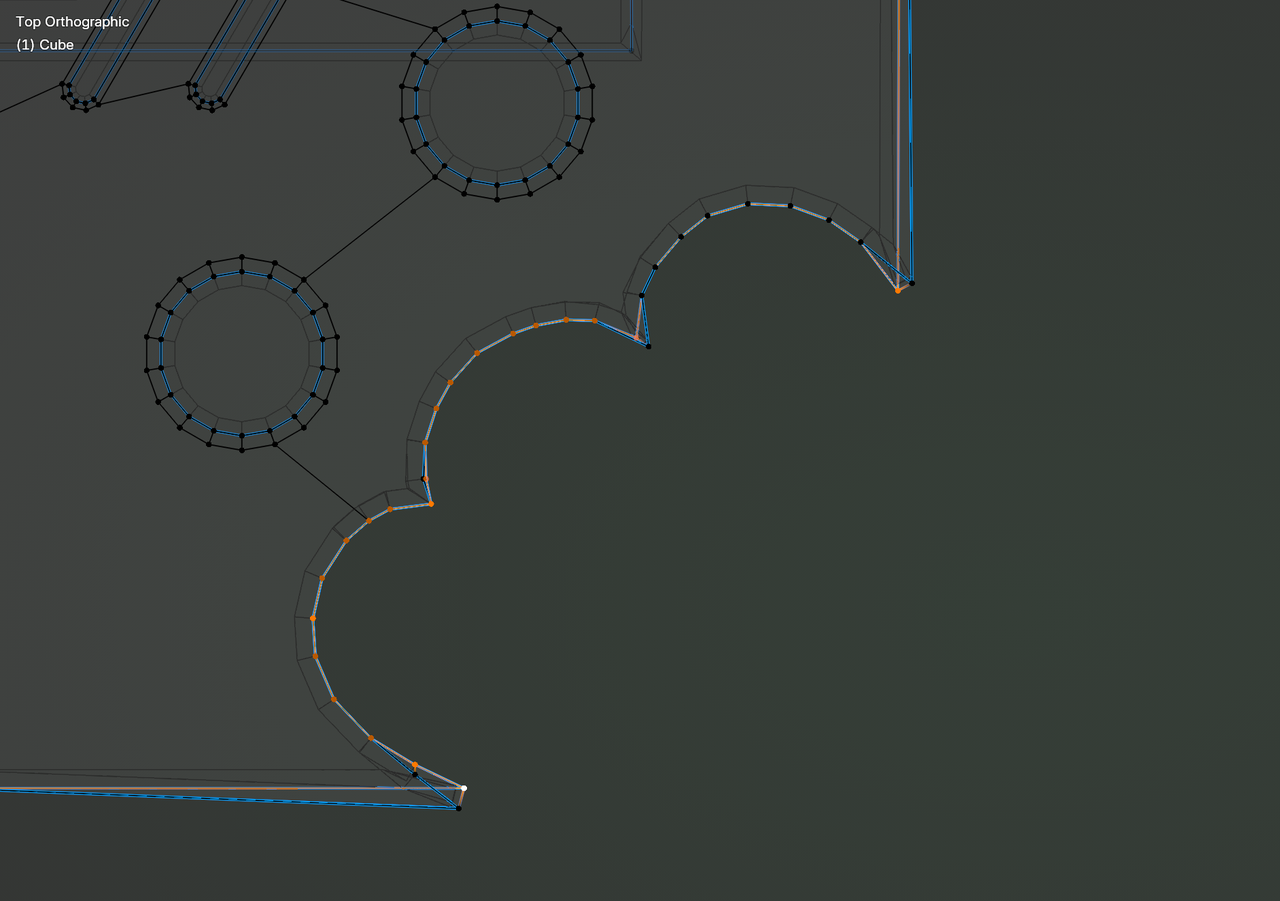

      Also make sure that Vertices are lining up where they need to; for instance, here are your bite marks from Top View:
